The new RXR22 is our most customizable rimfire rifle yet. It’s an affordable, reliable rifle that’s great for family fun at the range or a day of hunting small game in the field. One of the main features of the RXR22 is its removable trigger group, which is compatible with commonly available aftermarket trigger groups. Whether you’re looking to replace your RXR22 trigger with an aftermarket trigger or just stripping your rifle down for a good cleaning, this guide will go through how to remove and replace your RXR22 trigger group!

RXR22 Trigger Removal

WARNING! Make sure your firearm is completely unloaded before attempting any field stripping or disassembly. Do not have any ammunition in your work area when completing any field stripping or disassembly. Always keep the muzzle pointed in a safe direction.

The first step to removing the RXR22 trigger is removing the rifle’s stock.

• Ensure that the muzzle is pointed in a safe direction at all times.

• Make sure your finger is away from the trigger and out of the trigger guard. Unload the firearm as described in the applicable section.

• Ensure that the safety button is in the “FULL SAFE” position.

• Ensure that the chamber is clear of ammunition and that the magazine has been removed from the firearm.

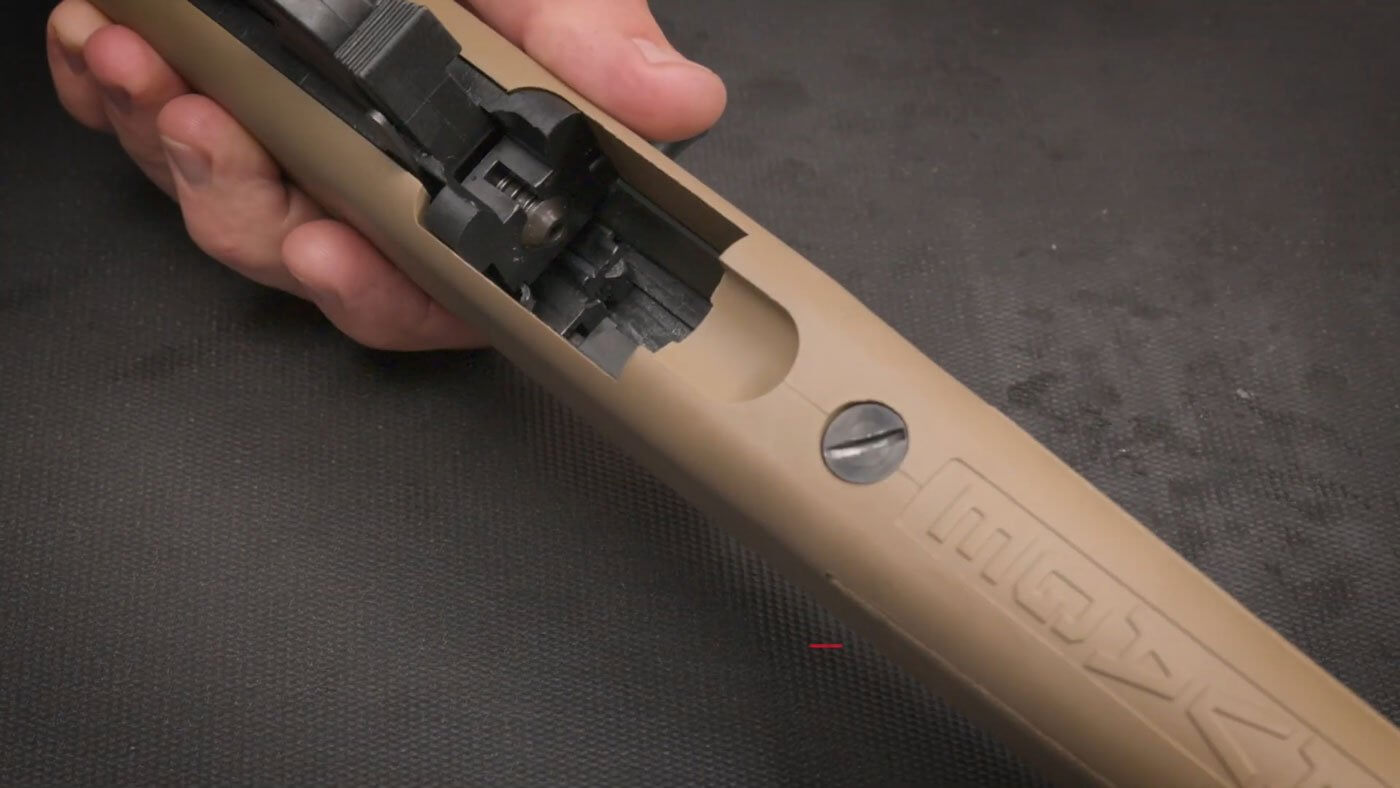

• Using an appropriately sized flat-bladed screwdriver or a coin, rotate the action screw counterclockwise. Unthread it until the screw comes loose from the action.

• The action screw is captive in the stock. It will not fall out of the stock on its own.

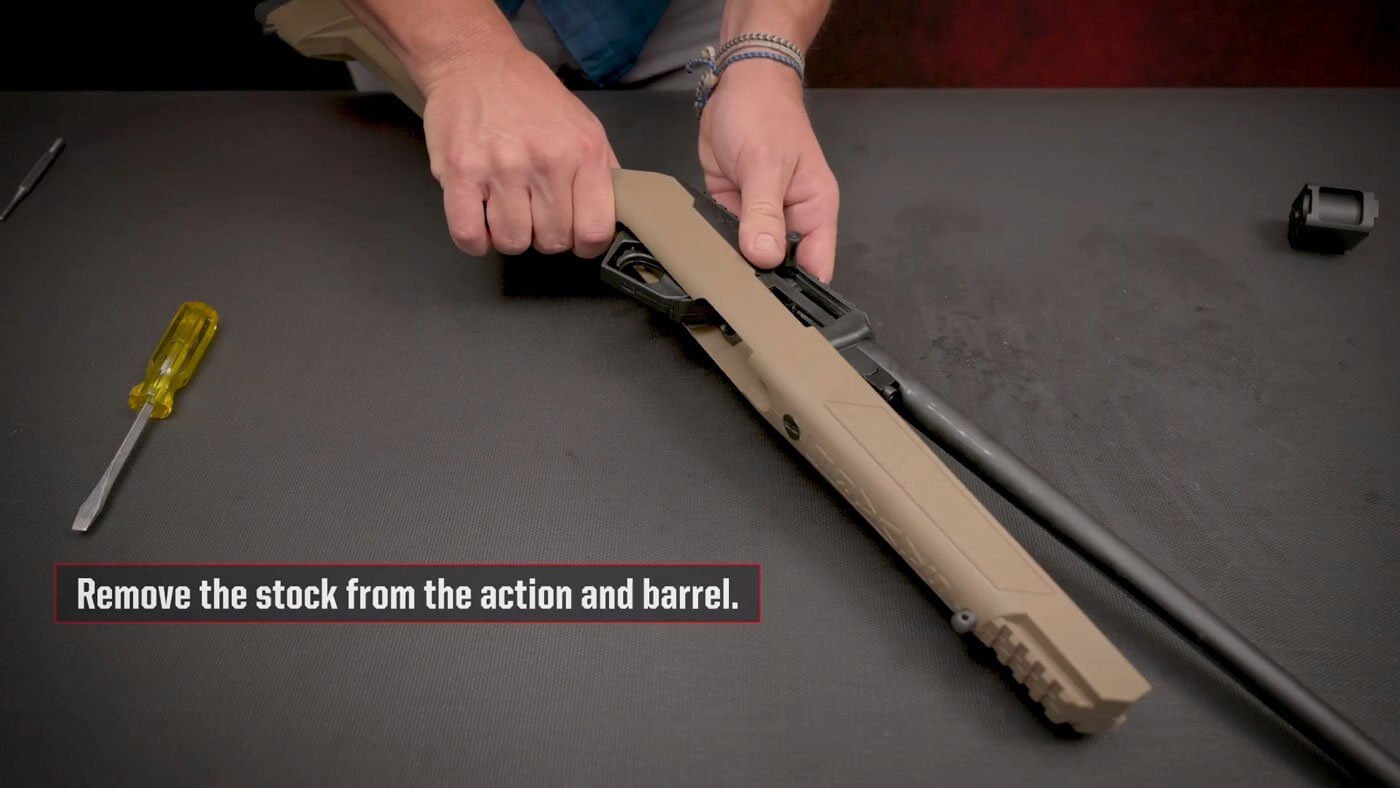

• Grasp the barrel towards the muzzle end and lift upwards. Remove the action from the stock.

After removing the stock, you can remove the RXR22 trigger group.

• Ensure that the muzzle is pointed in a safe direction at all times.

• Ensure that the safety button is in the “FULL SAFE” position.

• Ensure that the chamber is clear of ammunition and that the magazine has been removed.

• Allow the bolt to close as described in the applicable section.

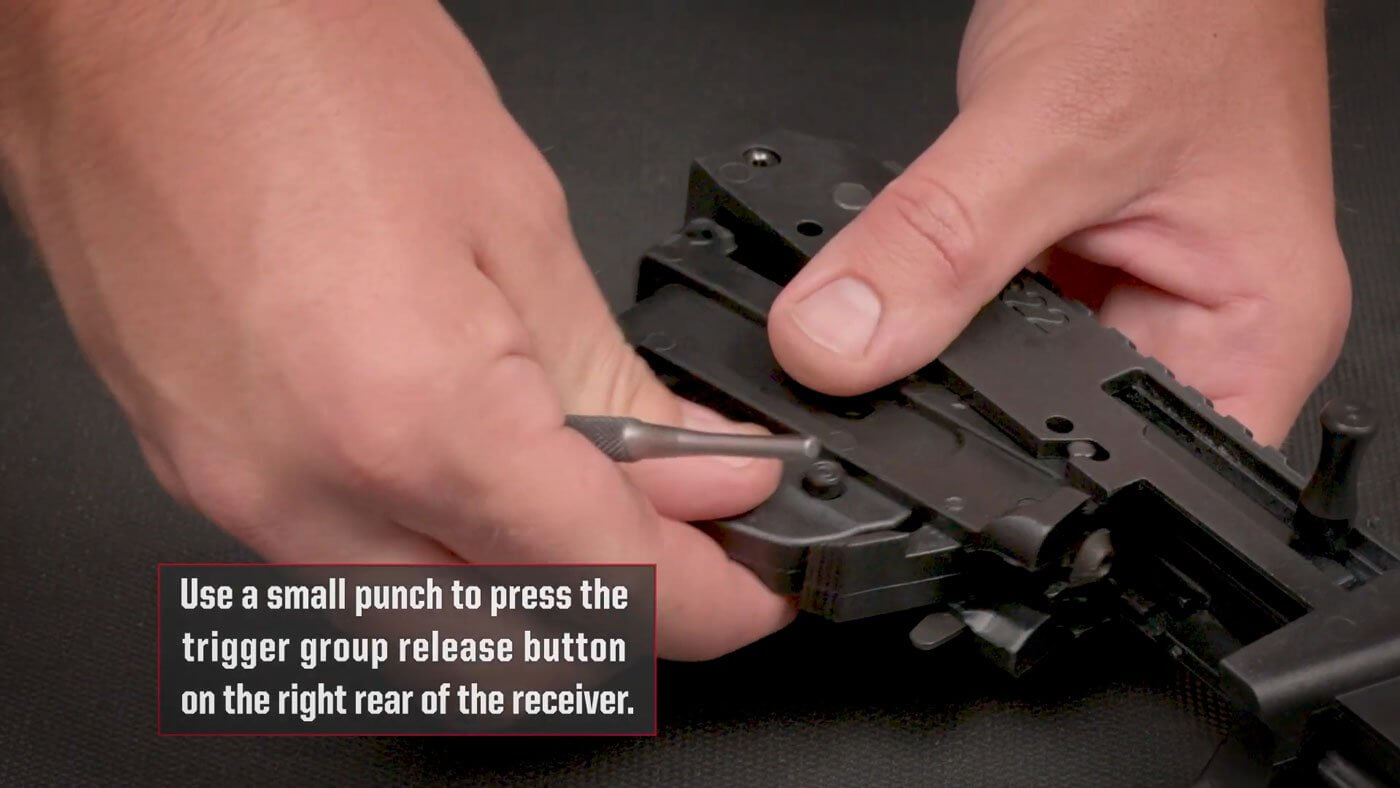

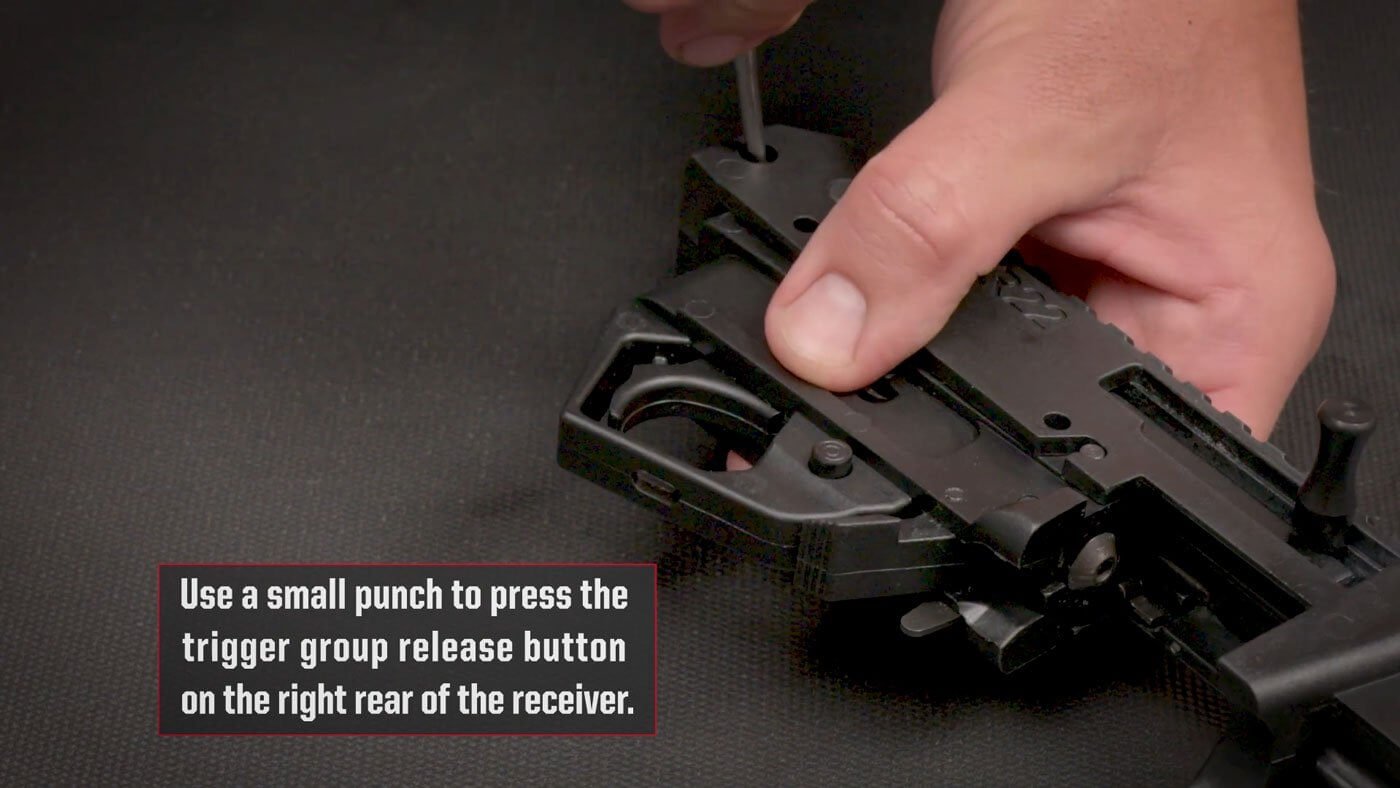

• Using a small punch, depress the trigger group release button on the right side at the rear of the receiver. This will allow the rear of the trigger group to swing down from the receiver.

• Rotate the trigger group down and pull slightly rearward to disengage the trigger group from the receiver.

RXR22 Trigger Installation

• To replace or reinstall your RXR22 trigger, simply follow these steps.

• Ensure that the muzzle is pointed in a safe direction at all times.

• Ensure that the chamber is clear of ammunition and that the magazine has been removed.

• Ensure that the hammer is in the cocked (rear) position and that the safety button is in the “FULL SAFE” position.

• Orient the bottom side of the receiver facing upwards.

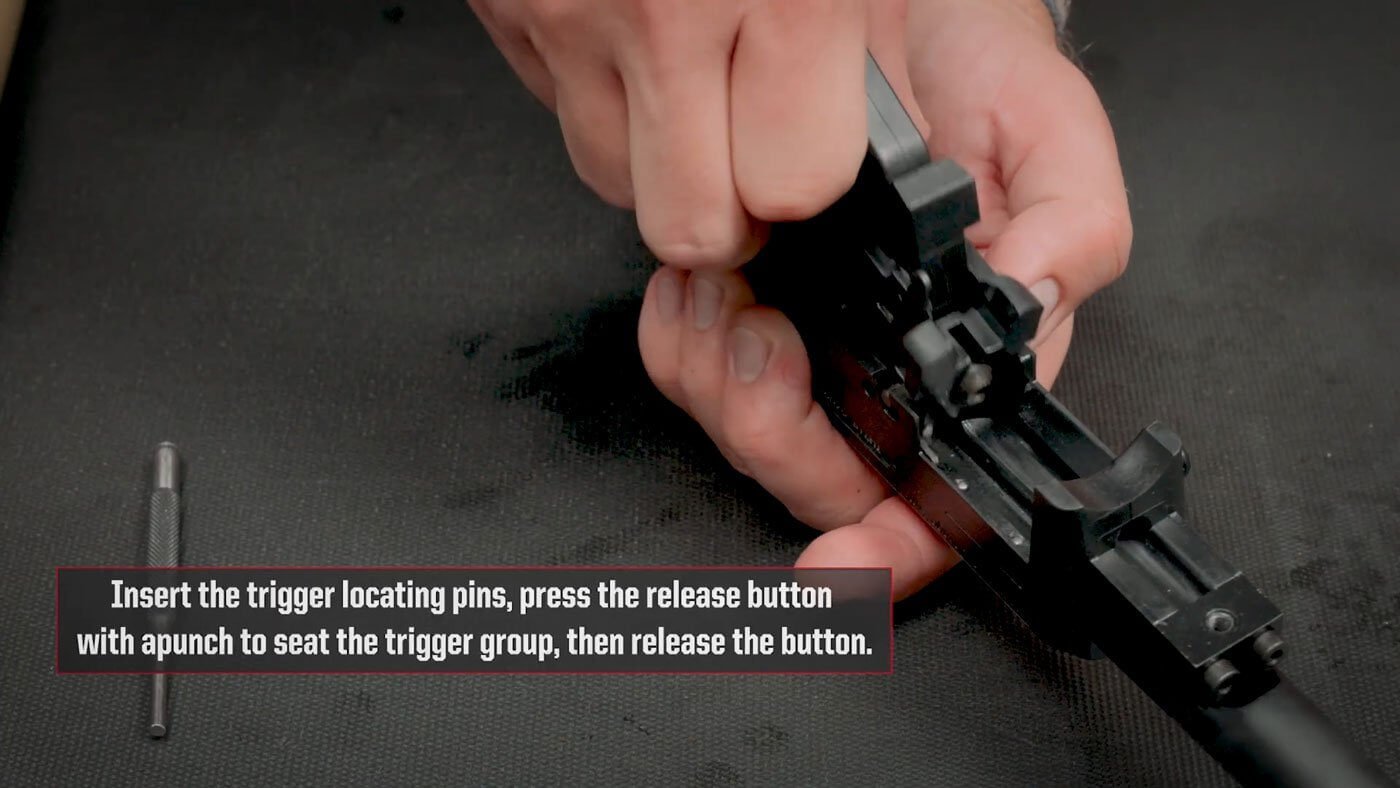

• Insert the trigger locating pins into the recesses in the receiver. Allow the trigger group to sit in the receiver.

• Press inward on the trigger group release button with a small punch to fully allow the trigger group to seat properly. Release the trigger group release button. Verify that the trigger group is seated properly by pulling on it away from the receiver. It shouldn’t move or come dislodged from the receiver. If it does, remove it and reinstall it.

• Grasp the cocking handle and lock the bolt open as described in the applicable section.

After reinstalling the trigger group, you should then reinstall the RXR22 stock.

• Ensure that the muzzle is pointed in a safe direction at all times.

• Ensure that the chamber is clear of ammunition and that the magazine has been removed.

• Ensure that the safety button is in the “FULL SAFE” position.

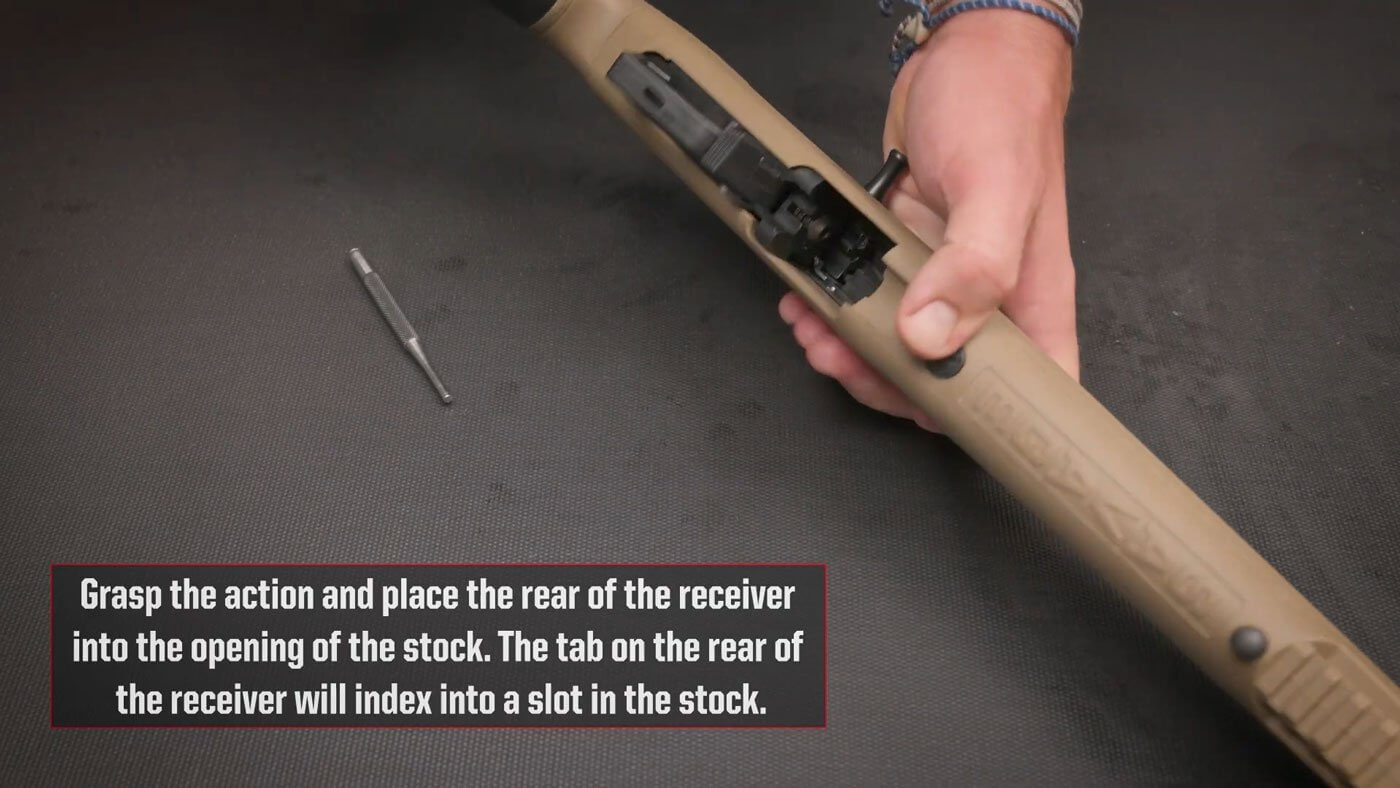

• Grasp the action and place the rear of the receiver into the opening of the stock. The tab on the rear of the receiver will index into a slot in the stock. This will help to locate the action properly.

• Fully seat the action into the stock.

• Insert the action screw. With a flat-bladed screwdriver or coin, tighten the action screw until it is snug. Suggested torque is 12-15 in.-lbs.

There you have it! Removing and reinstalling the RXR22 trigger group is straightforward and simple, making it easy for you to clean your trigger group or replace it with an aftermarket trigger.

Safe firearm ownership is your responsibility. When something does not sound, feel, or look right, seek the advice of a professional gunsmith immediately.

If you have any questions, please refer to your owner’s manual and call our customer service team at 1-800-370-0708 (Monday-Friday, 8am-5pm ET).
